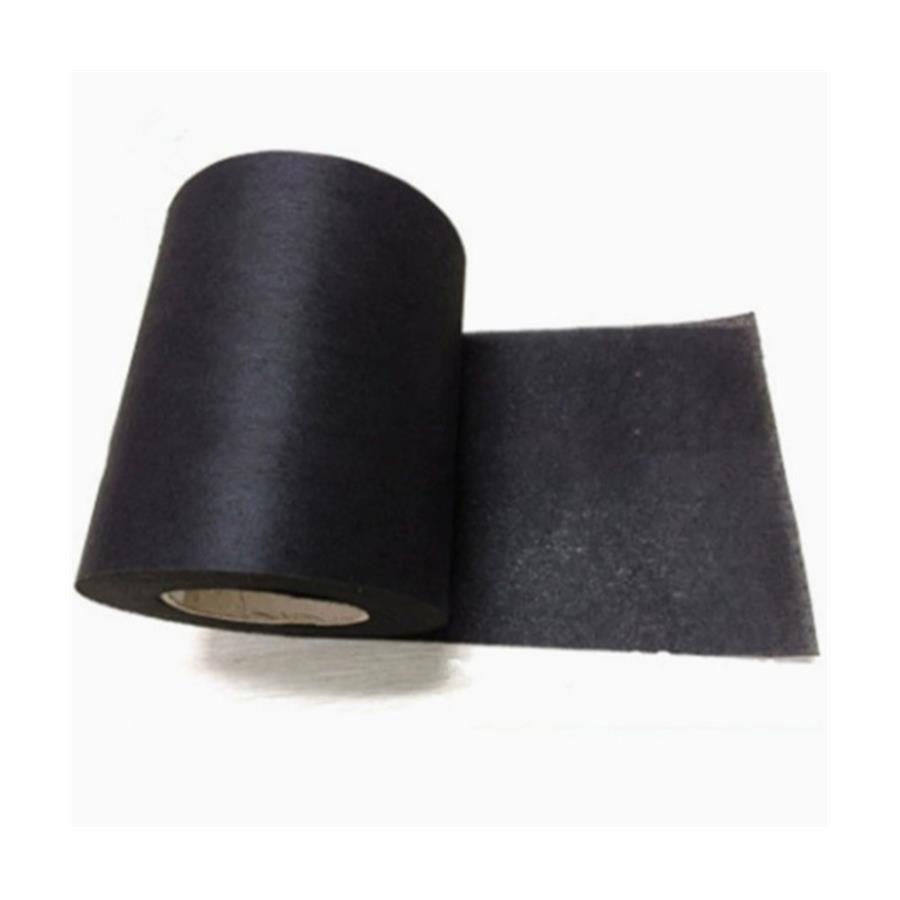

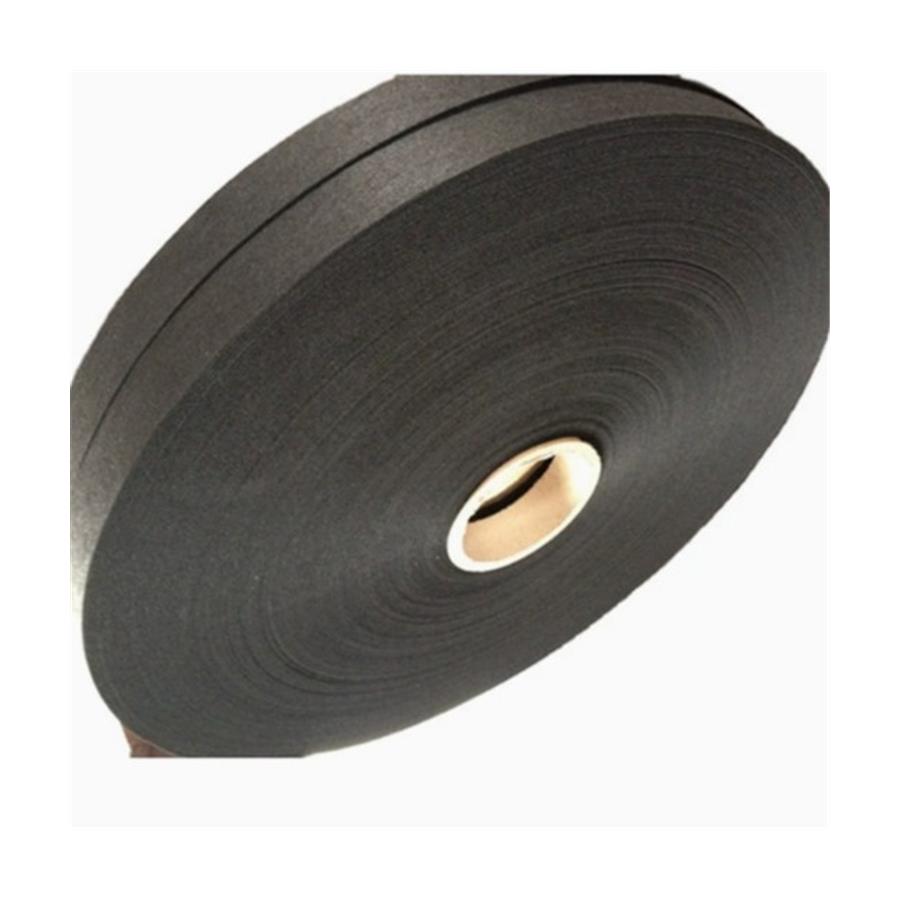

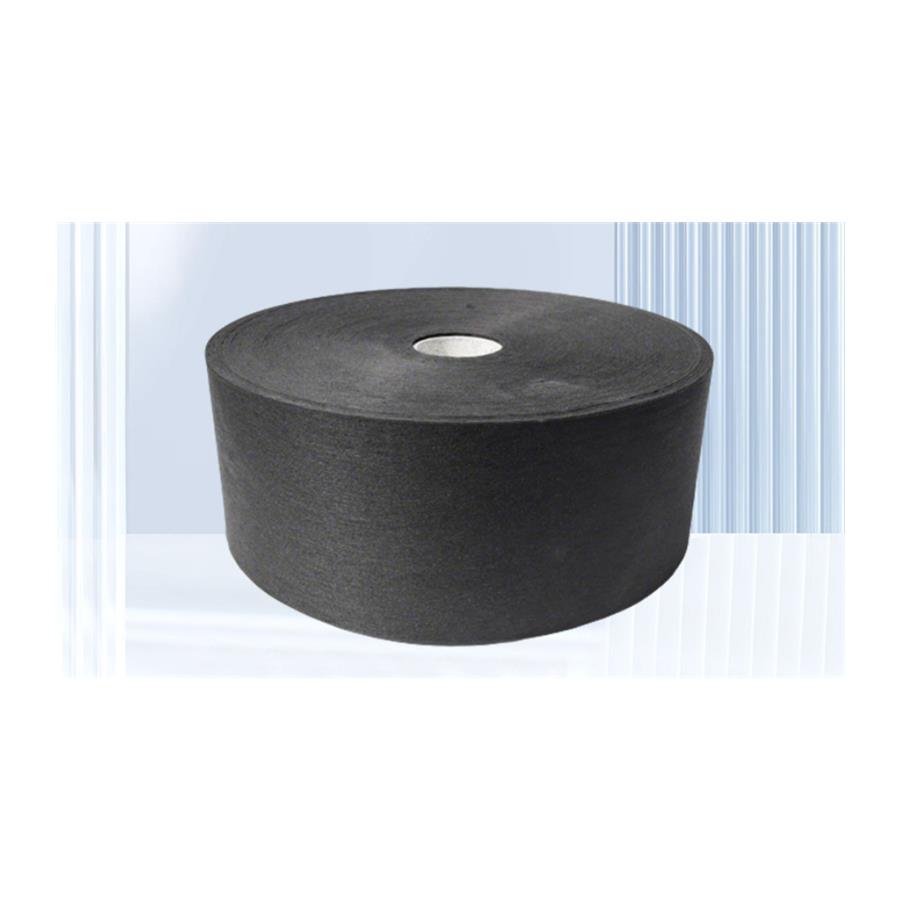

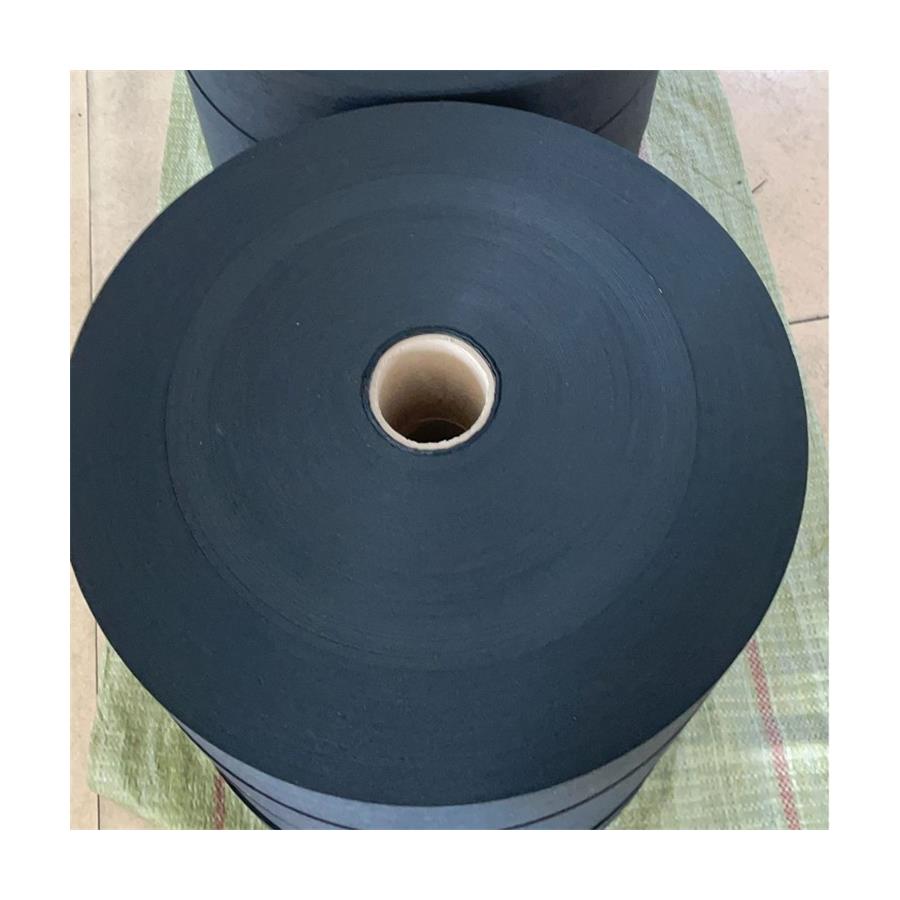

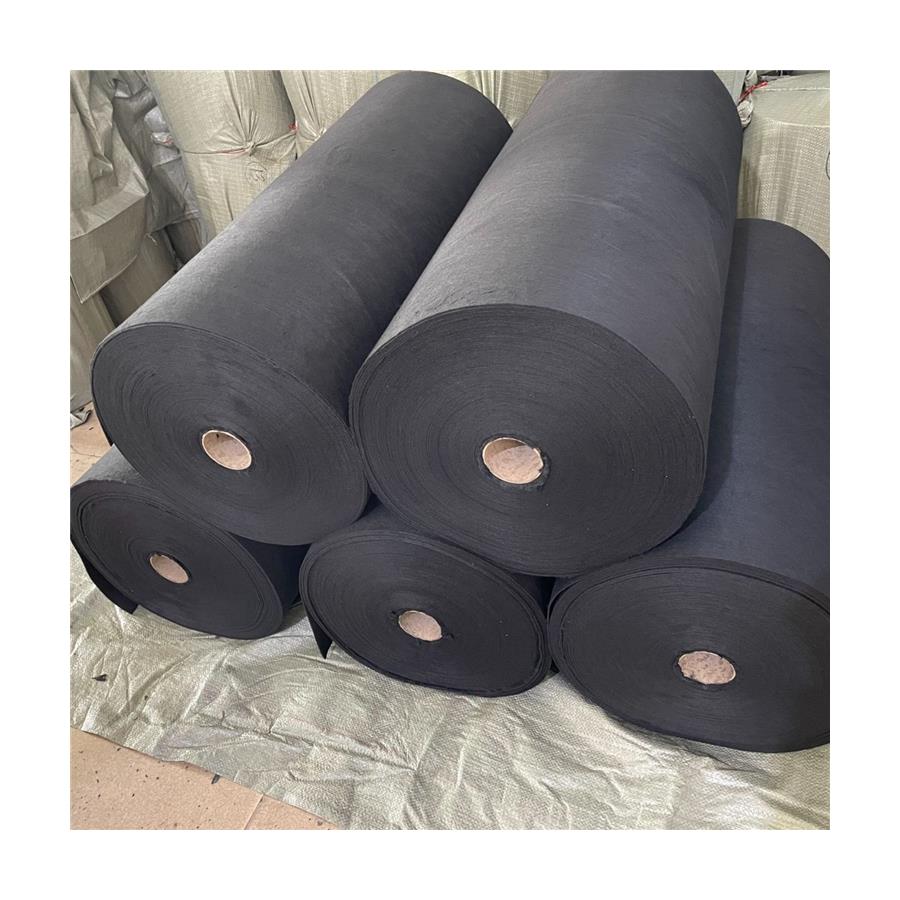

Granular Activated Carbon Nonwoven Fabric

Granular activated carbon nonwoven fabric is a flexible carbon-loaded medium for masks and deodorizing filtration components. Width, basis weight and converted format are selected for the downstream product.

Form
Roll / Sheet
Material
Polyester nonwoven with activated carbon
Application
Masks, air purifier and deodorizing filter layers
Customization
Width, basis weight, carbon loading and lamination

Catalog values are product-series references. Final values will be confirmed for the selected model and order specification.

Factory catalog reference

Technical Specifications

Values below come from the supplied factory catalog. Final specifications are confirmed by product model and order document.

Fiber base
Polyester staple or filament nonwoven
Activated carbon source
Wood, coal or coconut shell
Activated carbon content
30%
Benzene adsorption
≥12%
Basis weight
30–180 g/m²
Maximum width
1800 mm

Information needed for product selection

To introduce a suitable product, please share the following available information. A drawing or sample photo is also helpful for custom filter components.

  • Roll width or sheet dimensions
  • Required basis weight
  • Lamination and support-layer structure
  • Target product and application

OEM and conversion support

Junkang supports filter media supply and custom component development. Available project discussions include roll or sheet supply, cut-to-size conversion, lamination, framing and filter assembly according to the product type.
